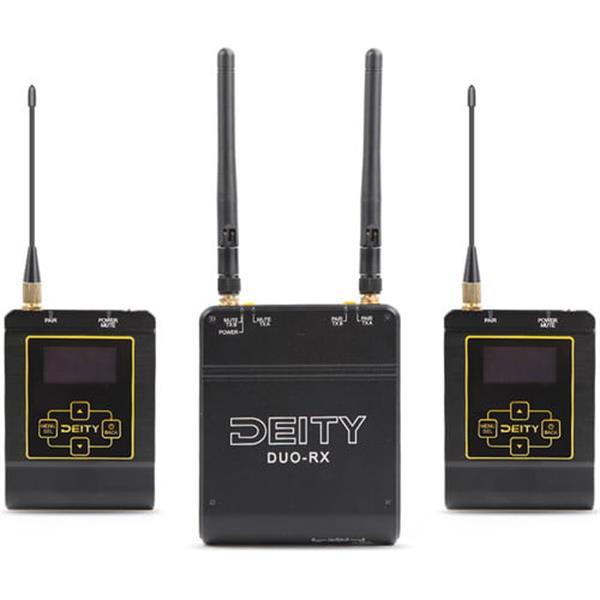

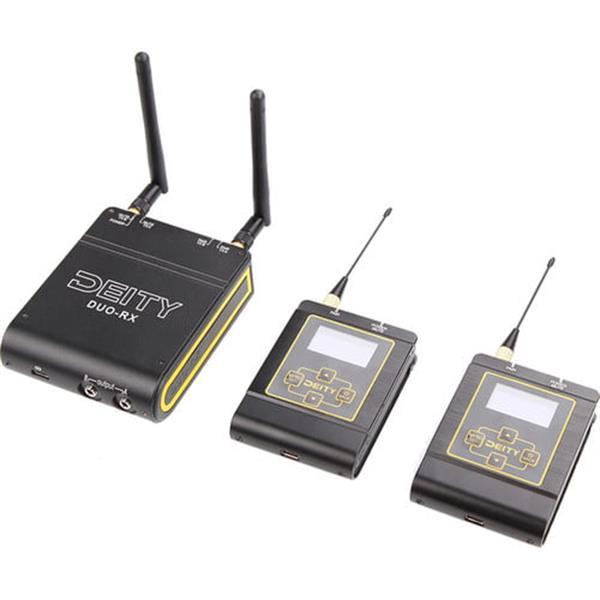

Deity Microphones Deity Connect Dual-Channel True Diversity Wireless System (2.4 GHz)
Deity Connect Professional 2.4Ghz Wireless Microphone System with Transmitter and Receiver . Finally, a professional 2.4Ghz wireless system.

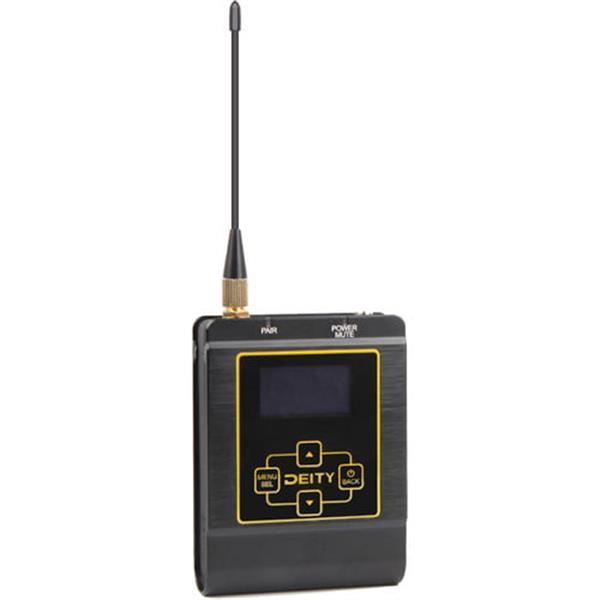

Deity Connect is the 2.4Ghz wireless system you’ve always wanted. No longer do you have to worry about the hassles of UHF to get pro-level features like input gain, low cut, analogue limiter, balanced outputs, and an OLED menu. The BP-TX is made out of brushed aluminium to give it tough, durable build quality. The top of the unit features an SMA antenna connector, a 1/4″ 20 mounting point for the belt clip, and a locking 3.5mm standard microphone input. With 2 multi-colour LED alert lights you will be able to tell the status at just a glance. The daylight bright OLED display offers a fast refresh rate so VU meters bounce in real time. The high resolution of the OLED display allows for the statuses of all the major features to be displayed on the home screen.
The Transmitter RF power output is 100mw / 50mw / 25mw / 10mw/ or AUTO. When you set the BP-TX to AUTO RF Power the Deity Connect’s DUO-RX will transmit a pulse to the BP-TX (if the signal drops below the threshold), telling the BP-TX to increase its RF power output to help prevent a loss of signal. Using AUTO RF Power will also increase your battery life because you will never use more power than the system actually needs.
All settings on the BP-TX can be overwritten in the menu of the DUO-RX. Now you no longer have to walk over to an actor to change a simple setting. Simple pull up which transmitter you need to adjust in the menu of the DUO-RX, make the change, and instantly the selected BP-TX updates to the new setting.

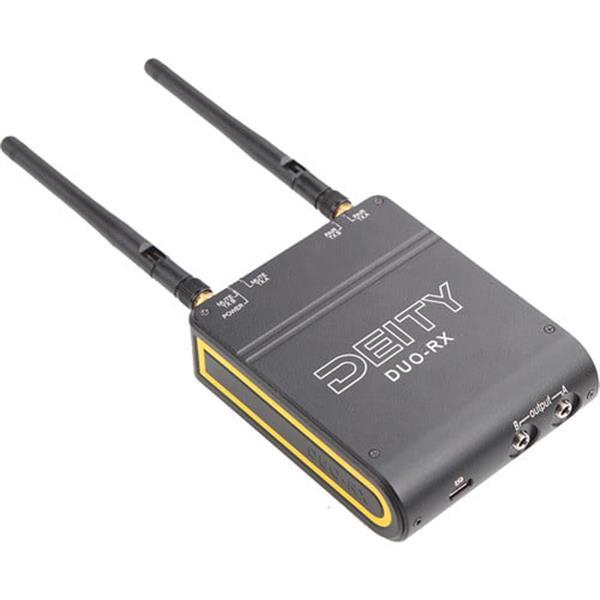

From the start Deity Microphones wanted the Deity Connect system to work with the ergonomics of a sound bag. The DUO-RX was designed so that the screen, buttons, and antenna all face up in a sound bag so the operator does not need to remove it. And with the USB-C power and audio outputs on the bottom, the cable management can be maximized inside the audio bag. These two ergonomic principals also allow for the screen to face camera operators when mounting it onto a camera, instead of facing the ceiling like other brands.

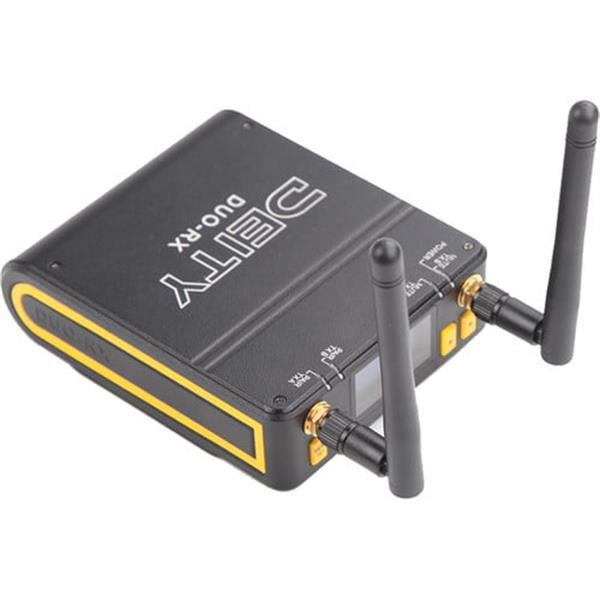

Deity Microphones added dual SMA elbow antennas so no matter how you mount the DUO-RX your external antenna can always be mounted vertically. But Deity Microphones took it a step further by adding two dipole internal horizontal antennas to capture signals on the horizontal plane. This quad design gives us a dual true diversity setup across two receiver modules. This is the same method used in commercial grade WiFi and high-end drones. And because Deity Microphones offer users removable antennas, you can upgrade the antenna array yourself if you want to add a clover antenna, directional antenna, or even connect to a 2.4Ghz antenna splitter.
The Deity Connect ecosystem uses a proprietary protocol that was engineered with several mechanisms to ensure a strong audio link while at the same time co-existing peacefully with other 2.4Ghz devices using the same frequency band.
The first mechanism is adaptive frequency hopping, automatically hopping before RF interference even happens. At any given time, the BP-TX is hopping between 9 different frequencies. The Deity Connect system is more than just a transmitter and a receiver link – it’s a bi-directional transceiver system that is always scanning and mapping out the whole 2.4Ghz frequency band, coordinating and planning the next 70 fr
